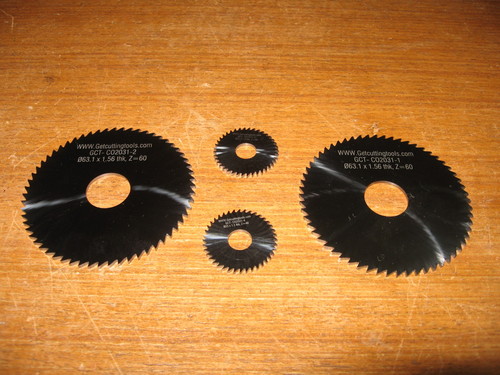

Carbide Slitting Saw

Get a Price/Quote

MOQ : 3 Pieces

Carbide Slitting Saw Specification

Design
Tungsten carbide circular tooth design

Precision
High precision ground

Surface Treatment
Polished

Shape
Circular

Type
Slitting Saw

Blade Material
Solid Tungsten Carbide

Handle Material
N/A (arbor mounted)

Application
Metal cutting, slotting, grooving, machining hardened materials

Hardness
Above HRC 70

Thickness
0.2 - 5 mm (varies by model)

Sharpness
Industrial grade sharp cutting edges

Edge Trimming
Fine edge trimming capability

Finish
Fine mirror finish

Teeth Type
Straight and staggered tooth options

Standards
ISO and DIN standards compliant

Coating
Uncoated or TiN/TiAlN coated as required

Outer Diameter
20 mm to 200 mm (customization available)

Usage Life
Long operational life with proper use

Customization
Available as per customer specification

Compatible Machines
CNC machines, milling machines, slotting machines

Arbor Hole Size
6 mm to 50 mm (customizable)

Corrosion Resistance
High

Cutting Direction
Right-hand and left-hand available

Re-sharpenable
Yes

Heat Resistance
Suitable for high speed dry and wet operations

Number of Teeth
Varies by diameter and thickness

Carbide Slitting Saw Trade Information

Minimum Order Quantity
3 Pieces

Supply Ability
10 Pieces Per Day

Delivery Time
7-30 Days

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
Plastic bag and Bubble wrap

Main Domestic Market
All India

About Carbide Slitting Saw

We are supported by a highly competitive and talented team of professionals helps us in manufacturing and exporting Carbide Slitting Saw. To comply with set industrial norms, we use finest quality tungsten carbide to manufacture this saw. This saw is used for cutting wood and metal items. We make this Carbide Slitting Saw available for clients in different sizes and specifications in order to meet their requirements.

Features:

Resistant to breakage
Rust proof
Light in weight

Further Details:

We offer these cutters in:-

HSS ( High Speed Steel ) standard/special grade- M2, M35, M42, T42 .

Carbide tipped ( brazed ).

Solid carbide.

These products are manufactured in various thickness. As the name suggests, these tools are used for machining of thin slots from- 0.2mm upto 6 mm.

The different tooth profiles and number of teeth are made to suit different machining conditions. Tooth profile that can be generated are

Precision and Durability for Modern Machining

Our carbide slitting saws deliver exceptional precision, high hardness, and long-lasting performance. Manufactured from solid tungsten carbide, each blade is ground to high accuracy and features mirror-polished, sharp cutting edges. Suitable for high-speed dry or wet operations, these slitting saws excel in metal cutting, grooving, and trimming, ensuring smooth, efficient machining even with the toughest materials.

Versatile and Customizable Blade Options

Choose from diameters ranging from 20 mm to 200 mm, with thicknesses from 0.2 to 5 mm. Straight and staggered tooth selections, variable teeth numbers, and customizable arbor holes ensure compatibility with a wide range of CNC, milling, and slotting machines. We provide further customization for coatings, sizes, and tooth geometries to meet unique operational requirements.

FAQ's of Carbide Slitting Saw:

Q: How do I select the correct size and tooth configuration for my application?

A: To select the right carbide slitting saw, consider the workpiece material, desired width of cut, and the type of machine. Choose the diameter (20 mm-200 mm) and thickness (0.2-5 mm) according to the slot dimensions you require. Tooth configuration-straight or staggered-depends on cutting speed and material removal. Our technical team can provide tailored recommendations based on your application.

Q: What materials can the Carbide Slitting Saw effectively cut?

A: The solid tungsten carbide construction makes these saws suitable for a wide range of materials, including steel, stainless steel, non-ferrous metals, and hardened alloys. The saw is specifically designed for slotting, grooving, trimming, and machining tough metal parts with high efficiency and precision.

Q: When should I use a coated versus uncoated slitting saw?

A: Coated blades (TiN or TiAlN) are ideal when you need enhanced wear resistance and longer tool life, particularly in demanding or high-speed cutting applications. Uncoated saws are suitable for general usage and cost-effectiveness. The right choice depends on your material, cutting speeds, and operational requirements.

Q: Where can these slitting saws be used, and what machines are they compatible with?

A: They are compatible with a variety of machines including CNC machines, milling machines, and slotting machines. This versatility makes them suitable for industrial workshops, manufacturing plants, and precision machining centers.

Q: What is the process for ordering a customized blade?

A: To order a custom blade, specify the required diameter, thickness, tooth type, arbor hole size, and any preferred coatings. You can send your specifications or drawings to our sales team. We will review the requirements, suggest optimizations if necessary, and provide a quotation along with estimated lead time.

Q: What are the main benefits of using this carbide slitting saw?

A: Key advantages include a high precision mirror finish, excellent wear and heat resistance, fine edge trimming, re-sharpenable design, and long operational life. These traits ensure superior cutting quality, efficiency, and reduced downtime in your machining processes.
